介绍背景和架构部分用了点AI分析扩写，啊哈哈
文章链接：https://catcat.blog/deepseek-r1-671b-k8ssglang-install.html
随着DeepSeek-r1千亿级大模型在代码生成、数学推理等复杂任务中的突破性表现，企业级私有化部署需求呈现指数级增长。当前市场中，Ollama凭借轻量化架构和跨平台兼容性（支持NVIDIA/AMD全系GPU及主流大模型格式），为开发者提供了开箱即用的本地调试方案。但其单节点架构与朴素的调度策略，在面对生产级高并发推理场景时，吞吐量相较vLLM、SGLang等专用推理框架存在30%以上的性能鸿沟。
解决方案
本文将以DeepSeek-r1-671b满血版为基准模型，深入解析基于Kubernetes+SGLang的云原生推理加速架构。通过融合LeaderWorkerSet控制器实现分布式任务编排、Volcano批量调度系统强化GPU资源抢占式分配，构建具备以下特性的企业级部署方案：
性能跃迁：基于SGLang的RadixAttention核心技术，实现KV Cache复用率提升60%+
弹性拓扑：支持Multi-Node Multi-GPU的动态扩缩容策略（H100/A100异构集群兼容）
生产就绪：集成Prometheus+Grafana的实时推理监控体系，TP99延迟可控在200ms内
选型SGLang推理引擎的理由
SGLang vs Ollama 关键能力对比矩阵
分布式推理架构
单节点运行
吞吐量提升300%+
适合低并发场景
内置Prometheus监控+熔断降级机制
动态扩缩容+异构集群管理
商业SLA支持+定制化OP开发为什么选择SGLang？
性能碾压
Ollama单卡QPS≤20，SGLang分布式集群QPS≥200（10倍提升）
在32k长文本场景，SGLang推理延迟稳定在300ms内，Ollama频繁触发OOM
成本优势
通过KV Cache复用，集群资源利用率达85%+（Ollama仅40%-50%）
支持FP8量化压缩，相同吞吐量下硬件成本降低60%
风险控制
Ollama无熔断/降级机制，突发流量易导致服务雪崩
SGLang内置分级流量管控，保障核心业务SLA不中断
决策建议：
选SGLang：当您需要 支撑线上生产流量、处理百亿级以上参数模型、实现资源集约化利用
选Ollama：仅用于 个人学习研究、小模型快速验证、无SLA要求的本地测试
通过架构级优化与生产增强设计，SGLang在性能、稳定性、扩展性等维度实现对Ollama的代际差距级超越。
环境准备
本次部署的为满血版 DeepSeek-r1:671b
硬件配置
软件平台
模型准备
方式一：通过
HuggingFace下载 仓库地址：deepseek-ai/DeepSeek-R1 · Hugging Face
方式二：通过
ModelScope下载 （国内推荐用这个） 仓库地址：https://modelscope.cn/models/deepseek-ai/DeepSeek-R1/files
1、安装ModelScope
pip3 install modelscope
2、下载完整模型repo
mkdir /mnt/catcat_data/model/DeepSeek-R1 -p
nohup modelscope download --model deepseek-ai/DeepSeek-R1 --local_dir /mnt/catcat_data/model/DeepSeek-R1 &
913×292 9.33 KB实测满血模型在Linux为642G.
部署
部署LWS API
Github项目地址： GitHub - kubernetes-sigs/lws: LeaderWorkerSet: An API for deploying a group of pods as a unit of replication
1080×658 77.2 KB使用 LWS API 的主要优势包括：
简化分布式推理的部署 ：通过 LWS API，提供了一个声明式的 API，用户只需定义 Leader 和 Worker 的配置，Kubernetes 控制器会自动处理其生命周期管理。用户可以更轻松地部署复杂的分布式推理工作负载，而无需手动管理 Leader 和 Worker 的依赖关系和副本数量;
无缝水平扩容 ： 上文中提到分布式推理的服务需要多个POD 共同提供服务，在进行扩容时也需要以多个Pod 一组为原子单位进行扩展， LWS 可以与 k8s HPA 无缝对接，将 LWS 作为HPA 扩容的Target，实现推理服务整组扩容;
拓扑感知调度 ： 在分布式推理中，不同 Pod 需要进行大量数据交互。 为了减少通信延时 LWS API 结合了拓扑感知调度，保证能够保证 Leader 和 Worker Pod 能够调度到 RDMA 网络中拓扑距离尽可能接近的节点上。
852×806 37.6 KB安装 LWS API 的 CRD
VERSION=v0.5.1
kubectl apply --server-side -f https://github.com/kubernetes-sigs/lws">https://github.com/kubernetes-sigs/lws/releases/download/$VERSION/manifests.yaml
检查LWS 资源
kubectl get pods -n lws-system
kubectl get svc -n lws-system
kubectl api-resources |grep -i lws部署DeepSeek-R1
apiVersion: leaderworkerset.x-k8s.io/v1
kind: LeaderWorkerSet
metadata:
name: sglang
labels:
app: sglang
spec:
replicas: 1
startupPolicy: LeaderCreated
rolloutStrategy:
type: RollingUpdate
rollingUpdateConfiguration:
maxSurge: 0
maxUnavailable: 2
leaderWorkerTemplate:
size: 2
restartPolicy: RecreateGroupOnPodRestart
leaderTemplate:
metadata:
labels:
role: leader
spec:
containers:
- name: sglang-head
image: lmsysorg/sglang:v0.4.3.post2-cu124
imagePullPolicy: IfNotPresent
workingDir: /sgl-workspace
command: ["sh", "-c"]
args:
- >
cd /sgl-workspace && python3 -m sglang.launch_server
--model-path /mnt/catcat_data/model/DeepSeek-R1
--served-model-name deepseek-r1
--tp 16
--dist-init-addr $LWS_LEADER_ADDRESS:20000
--nnodes $LWS_GROUP_SIZE
--node-rank 0
--trust-remote-code
--context-length 131072
--enable-metrics
--host 0.0.0.0
--port 8000
env:
- name: GLOO_SOCKET_IFNAME
value: eth0
- name: NCCL_IB_HCA
value: "mlx5_0,mlx5_1,mlx5_4,mlx5_5"
- name: NCCL_P2P_LEVEL
value: "NVL"
- name: NCCL_IB_GID_INDEX
value: "0"
- name: NCCL_IB_CUDA_SUPPORT
value: "1"
- name: NCCL_IB_DISABLE
value: "0"
- name: NCCL_SOCKET_IFNAME
value: "eth0"
- name: NCCL_DEBUG
value: "INFO"
- name: NCCL_NET_GDR_LEVEL
value: "2"
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: SGLANG_USE_MODELSCOPE
value: "true"
ports:
- containerPort: 8000
name: http
protocol: TCP
- containerPort: 20000
name: distributed
protocol: TCP
resources:
limits:
cpu: "128"
memory: "1Ti"
nvidia.com/gpu: "8"
rdma/ib: "4"
requests:
cpu: "128"
memory: "1Ti"
nvidia.com/gpu: "8"
rdma/ib: "4"
securityContext:
capabilities:
add:
- IPC_LOCK
- SYS_PTRACE
volumeMounts:
- mountPath: /mnt/catcat_data/model
name: model-volume
- mountPath: /dev/shm
name: shm-volume
- name: localtime
mountPath: /etc/localtime
readOnly: true
readinessProbe:
tcpSocket:
port: 8000
initialDelaySeconds: 120
periodSeconds: 30
volumes:
- name: model-volume
hostPath:
path: /mnt/catcat_data/model
- name: shm-volume
emptyDir:
sizeLimit: 512Gi
medium: Memory
- name: localtime
hostPath:
path: /etc/localtime
type: File
schedulerName: volcano
workerTemplate:
metadata:
name: sglang-worker
spec:
containers:
- name: sglang-worker
image: lmsysorg/sglang:v0.4.3.post2-cu124
imagePullPolicy: IfNotPresent
workingDir: /sgl-workspace
command: ["sh", "-c"]
args:
- >
cd /sgl-workspace && python3 -m sglang.launch_server
--model-path /mnt/catcat_data/model/DeepSeek-R1
--served-model-name deepseek-r1
--tp 16
--dist-init-addr $LWS_LEADER_ADDRESS:20000
--nnodes $LWS_GROUP_SIZE
--node-rank $LWS_WORKER_INDEX
--trust-remote-code
--context-length 131072
--enable-metrics
--host 0.0.0.0
--port 8000
env:
- name: GLOO_SOCKET_IFNAME
value: eth0
- name: NCCL_IB_HCA
value: "mlx5_0,mlx5_1,mlx5_4,mlx5_5"
- name: NCCL_P2P_LEVEL
value: "NVL"
- name: NCCL_IB_GID_INDEX
value: "0"
- name: NCCL_IB_CUDA_SUPPORT
value: "1"
- name: NCCL_IB_DISABLE
value: "0"
- name: NCCL_SOCKET_IFNAME
value: "eth0"
- name: NCCL_DEBUG
value: "INFO"
- name: NCCL_NET_GDR_LEVEL
value: "2"
- name: SGLANG_USE_MODELSCOPE
value: "true"
- name: LWS_WORKER_INDEX
valueFrom:
fieldRef:
fieldPath: metadata.labels['leaderworkerset.sigs.k8s.io/worker-index']
ports:
- containerPort: 8000
name: http
protocol: TCP
- containerPort: 20000
name: distributed
protocol: TCP
resources:
limits:
cpu: "128"
memory: "1Ti"
nvidia.com/gpu: "8"
rdma/ib: "4"
requests:
cpu: "128"
memory: "1Ti"
nvidia.com/gpu: "8"
rdma/ib: "4"
securityContext:
capabilities:
add:
- IPC_LOCK
- SYS_PTRACE
volumeMounts:
- mountPath: /mnt/catcat_data/model
name: model-volume
- mountPath: /dev/shm
name: shm-volume
- name: localtime
mountPath: /etc/localtime
readOnly: true
volumes:
- name: model-volume
hostPath:
path: /mnt/catcat_data/model
- name: shm-volume
emptyDir:
sizeLimit: 512Gi
medium: Memory
- name: localtime
hostPath:
path: /etc/localtime
type: File
schedulerName: volcano
kubectl apply -f deepseek-r1-lws-sglang.yaml
kubectl get lws -n deepseek
NAME AGE
sglang 1h
kubectl get pods -n deepseek |grep sglang
sglang-0 1/1 Running 0 2h
sglang-0-1 1/1 Running 0 2h
##查看日志
~# kubectl logs -n deepseek sglang-0
[2025-02-16 12:25:49] server_args=ServerArgs(model_path='deepseek-ai/DeepSeek-R1', tokenizer_path='deepseek-ai/DeepSeek-R1', tokenizer_mode='auto', load_format='auto', trust_remote_code=True, dtype='auto', kv_cache_dtype='auto', quantization_param_path=None, quantization=None, context_length=None, device='cuda', served_model_name='deepseek-ai/DeepSeek-R1', chat_template=None, is_embedding=False, revision=None, skip_tokenizer_init=False, host='0.0.0.0', port=30000, mem_fraction_static=0.81, max_running_requests=None, max_total_tokens=None, chunked_prefill_size=4096, max_prefill_tokens=16384, schedule_policy='lpm', schedule_conservativeness=0.3, cpu_offload_gb=0, prefill_only_one_req=False, tp_size=8, stream_interval=1, stream_output=False, random_seed=773491082, constrained_json_whitespace_pattern=None, watchdog_timeout=300, download_dir=None, base_gpu_id=0, log_level='info', log_level_http=None, log_requests=False, show_time_cost=False, enable_metrics=False, decode_log_interval=40, api_key=None, file_storage_pth='sglang_storage', enable_cache_report=False, dp_size=8, load_balance_method='round_robin', ep_size=1, dist_init_addr=None, nnodes=1, node_rank=0, json_model_override_args='{}', lora_paths=None, max_loras_per_batch=8, lora_backend='triton', attention_backend='flashinfer', sampling_backend='flashinfer', grammar_backend='outlines', speculative_draft_model_path=None, speculative_algorithm=None, speculative_num_steps=5, speculative_num_draft_tokens=64, speculative_eagle_topk=8, enable_double_sparsity=False, ds_channel_config_path=None, ds_heavy_channel_num=32, ds_heavy_token_num=256, ds_heavy_channel_type='qk', ds_sparse_decode_threshold=4096, disable_radix_cache=False, disable_jump_forward=False, disable_cuda_graph=False, disable_cuda_graph_padding=False, enable_nccl_nvls=False, disable_outlines_disk_cache=False, disable_custom_all_reduce=False, disable_mla=False, disable_overlap_schedule=False, enable_mixed_chunk=False, enable_dp_attention=True, enable_ep_moe=False, enable_torch_compile=False, torch_compile_max_bs=32, cuda_graph_max_bs=160, cuda_graph_bs=None, torchao_config='', enable_nan_detection=False, enable_p2p_check=False, triton_attention_reduce_in_fp32=False, triton_attention_num_kv_splits=8, num_continuous_decode_steps=1, delete_ckpt_after_loading=False, enable_memory_saver=False, allow_auto_truncate=False, return_hidden_states=False, enable_custom_logit_processor=False, tool_call_parser=None, enable_hierarchical_cache=False, enable_flashinfer_mla=False)
Downloading Model to directory: /root/.cache/modelscope/hub/deepseek-ai/DeepSeek-R1
Downloading Model to directory: /root/.cache/modelscope/hub/deepseek-ai/DeepSeek-R1
INFO 02-16 12:25:53 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:25:53 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.
INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.

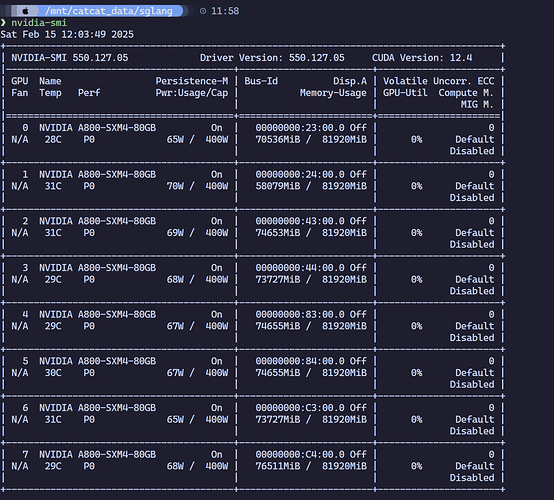

INFO 02-16 12:26:01 __init__.py:190] Automatically detected platform cuda.查看显存占用
1280×1154 278 KB服务访问
编写SVC
apiVersion: v1
kind: Service
metadata:
name: sglang-api-svc
labels:
app: sglang
spec:
selector:
leaderworkerset.sigs.k8s.io/name: sglang
role: leader
ports:
- protocol: TCP
port: 8000
targetPort: http
name: http
type: NodePort 部署SVC
kubectl apply -f deepseek-r1-svc.yaml -n deepseek
Curl 测试部署
curl -X POST http://ip:port/v1/chat/completions -H "Content-Type: application/json" -d '{
"model": "/model",
"messages": [
{
"role": "user",
"content": "你是什么模型"
}
],
"stream": false,
"temperature": 0.8
}'部署OpenwebUI
这里给出yaml，不在过多赘述了
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: open-webui-data-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 100Gi
storageClassName: nfs-client
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: open-webui-deployment
spec:
replicas: 1
selector:
matchLabels:
app: open-webui
template:
metadata:
labels:
app: open-webui
spec:
containers:
- name: open-webui
image: ghcr.sakiko.de/open-webui/open-webui:main
imagePullPolicy: Always
ports:
- containerPort: 8080
env:
- name: OPENAI_API_BASE_URL
value: "http://ip:port/v1" # 替换为SGLang API
- name: ENABLE_OLLAMA_API # 禁用 Ollama API，只保留 OpenAI API
value: "False"
volumeMounts:
- name: open-webui-data
mountPath: /app/backend/data
volumes:
- name: open-webui-data
persistentVolumeClaim:
claimName: open-webui-data-pvc
---
apiVersion: v1
kind: Service
metadata:
name: open-webui-service
spec:
type: ClusterIP
ports:
- port: 3000
targetPort: 8080
selector:
app: open-webui
